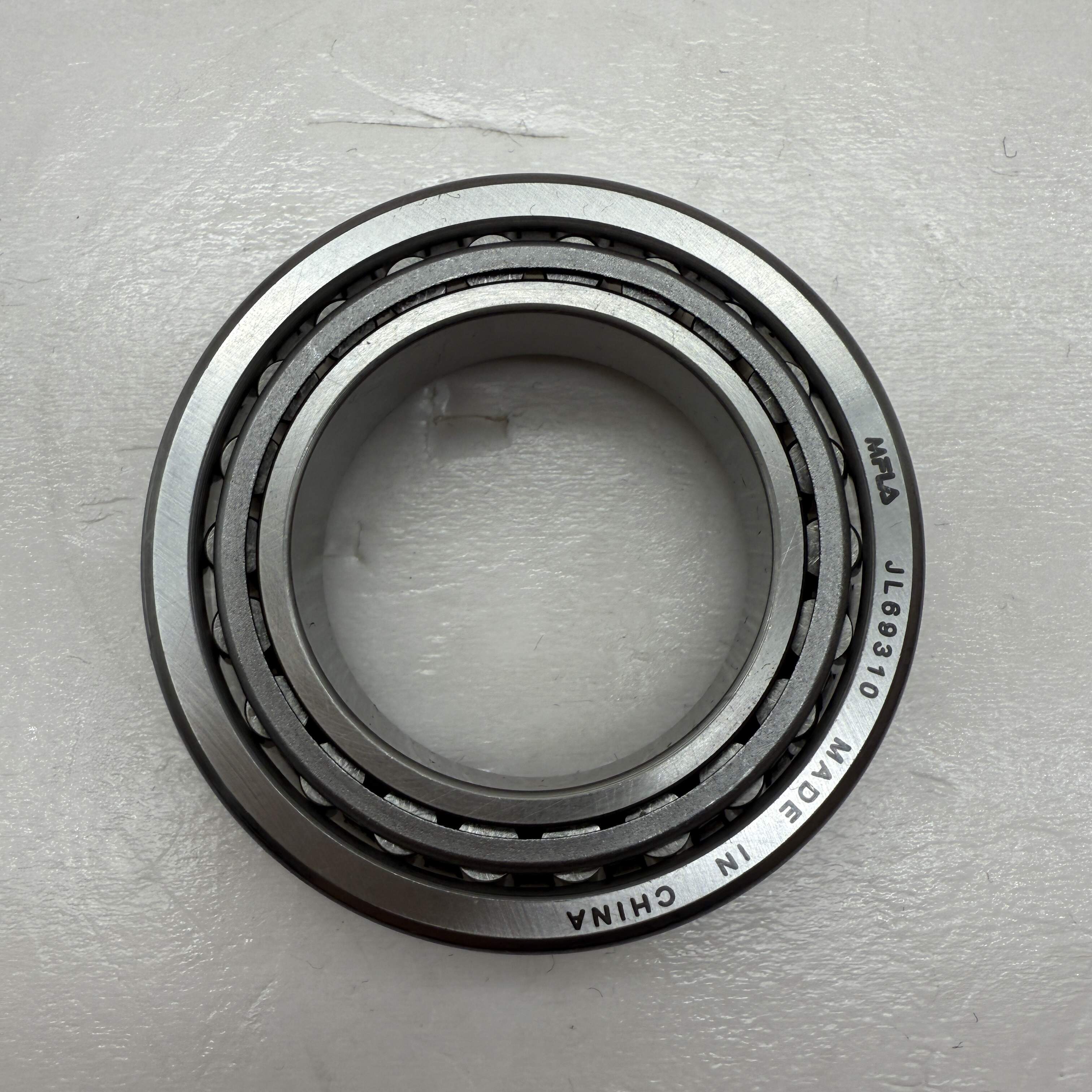

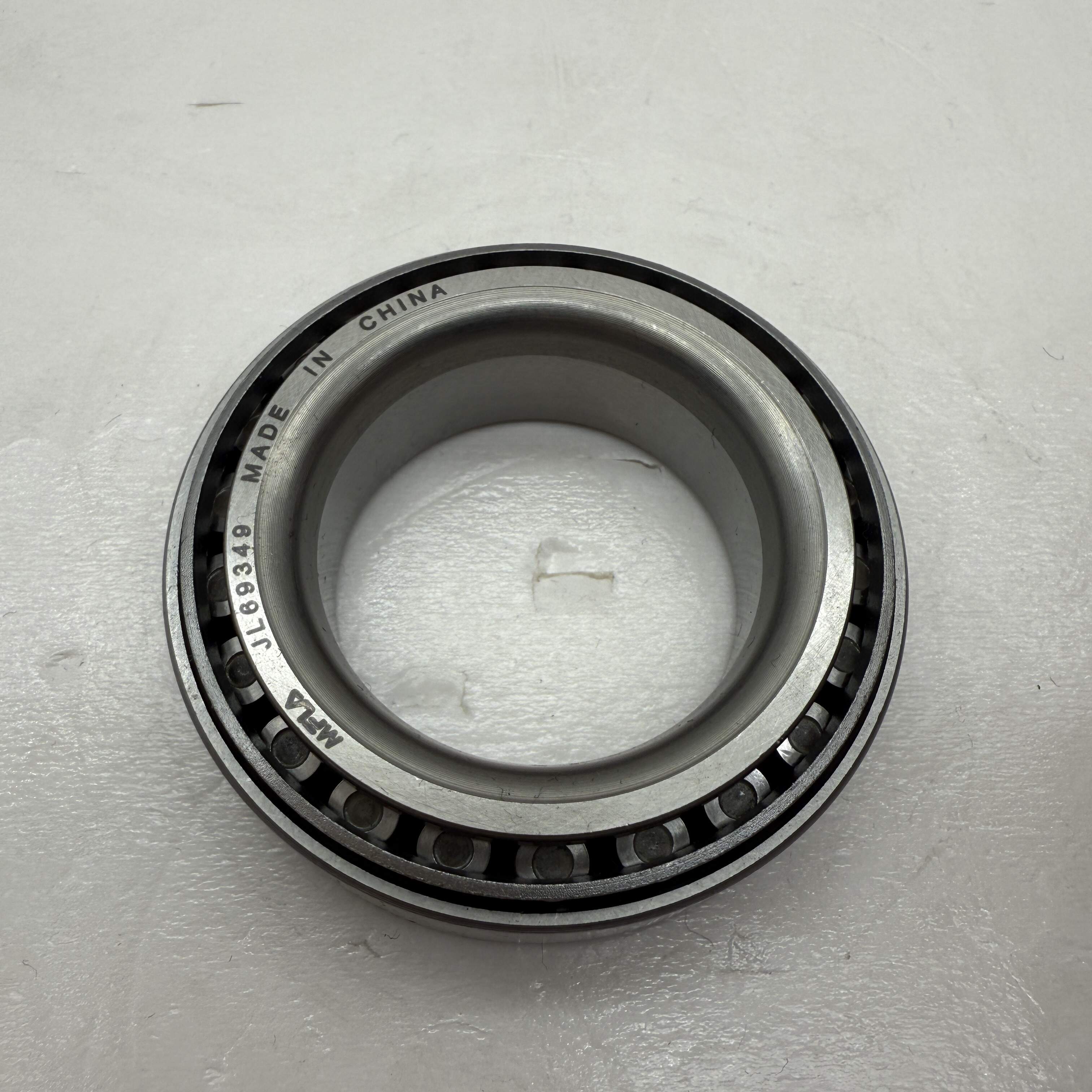

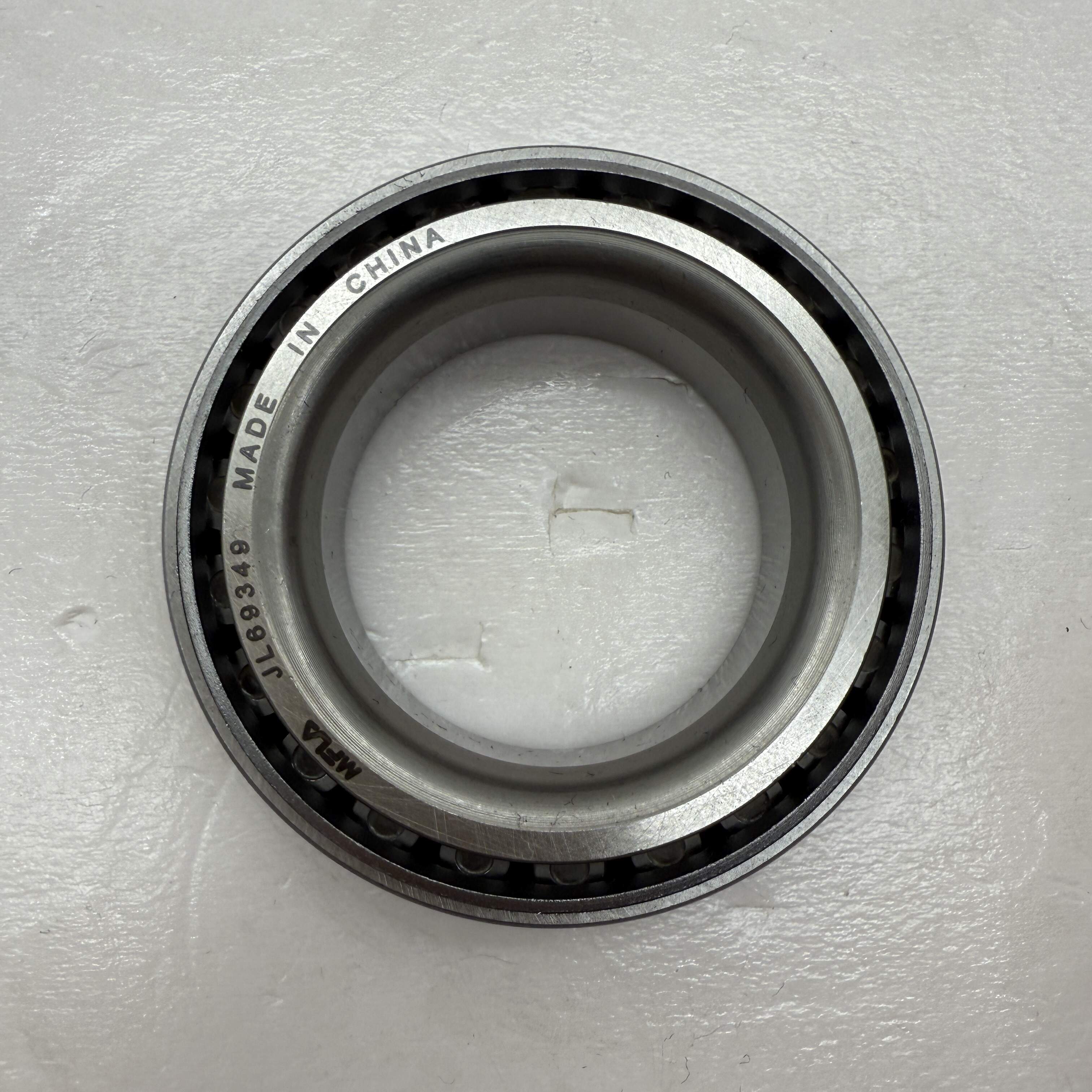

The JL69349/10 tapered roller bearing is designed to accommodate combined loads — both radial and axial — making it ideal for high-load and high-speed applications. It consists of a cone assembly (inner ring, rollers, and cage) and a cup (outer ring), ensuring ease of installation and replacement. Manufactured from high-strength steel and finished with a corrosion-resistant coating, this bearing is built for tough working conditions.
Key Features
High Load Capacity: Designed to handle significant radial and axial forces simultaneously.
Durable and Reliable: Manufactured with premium steel and precision rollers to extend service life.
Corrosion Resistant: Surface-treated for added protection against rust and wear.
Precision Performance: Reduces friction, ensures low noise and vibration during operation.
Easy Installation: Separable components (cone and cup) allow for straightforward assembly and maintenance.
Key Specifications
Item |
Details |
OEM Part Number |
JL69349/10 |
Bearing Type |
Single-Row Tapered Roller Bearing |
Material |
High-Strength Steel |
Condition |
New |
Compatible Lubricant |
Grease |
Inner Diameter (d) |
38 mm |
Outer Diameter (D) |
63 mm |
Width (B) |
17 mm |
Basic Dynamic Load Rating (Cr) |
43.5 kN |
Basic Static Load Rating (Cor) |
58.2 kN |
Ultimate Speed (Grease) |
6,000 rpm |
Ultimate Speed (Oil) |
8,000 rpm |
Weight |
0.19 kg |
Application Range
The JL69349/10 bearing is widely used across multiple industries:
Automotive Industry
Industrial Machinery
Agricultural Equipment
Construction Machinery
Tip: Always cross-check the bearing dimensions and specifications with your specific equipment requirements before ordering.
Additional Information
1. Order & Payment
MOQ: 100 - 1,000 PCS
Payment Terms: T/T (Bank Transfer)
Sample Policy: Samples available (Free for samples under ¥100; cost refundable upon bulk order).
2. Production & Customization
Factory Location: Linqing City, Shandong Province, China
Company Type: Manufacturer & Trading Integrated
OEM/ODM: Supported
Custom Solutions: Tailored bearings for specific vehicles, environments, and performance needs.
Monthly Capacity: 200,000 sets.
3. Quality Assurance
Quality Standards: Rigorous testing (dimensions, rotation accuracy, noise, vibration, etc.).
Warranty: 50,000–80,000 KM durability guarantee.
Packaging: Individual color box + carton; palletized for large orders.
4. Shipping & Delivery
Delivery Time: 5–50 days (based on stock & production schedule).
Shipping Methods: Sea, Land, or Air (flexible based on order volume).
Tracking: Real-time updates via our website.
5. After-Sales Support
Technical Assistance: 24/7 online support.
Issue Resolution: Contact us immediately for unreceived/damaged items.
6. Why Choose Us?
20+ Years Expertise (Est. 2003)
Precision Matching for vehicle-specific needs.
Transparent Process: From quote to delivery (provide bearing codes/OEM numbers + quantity for accurate quotes).
