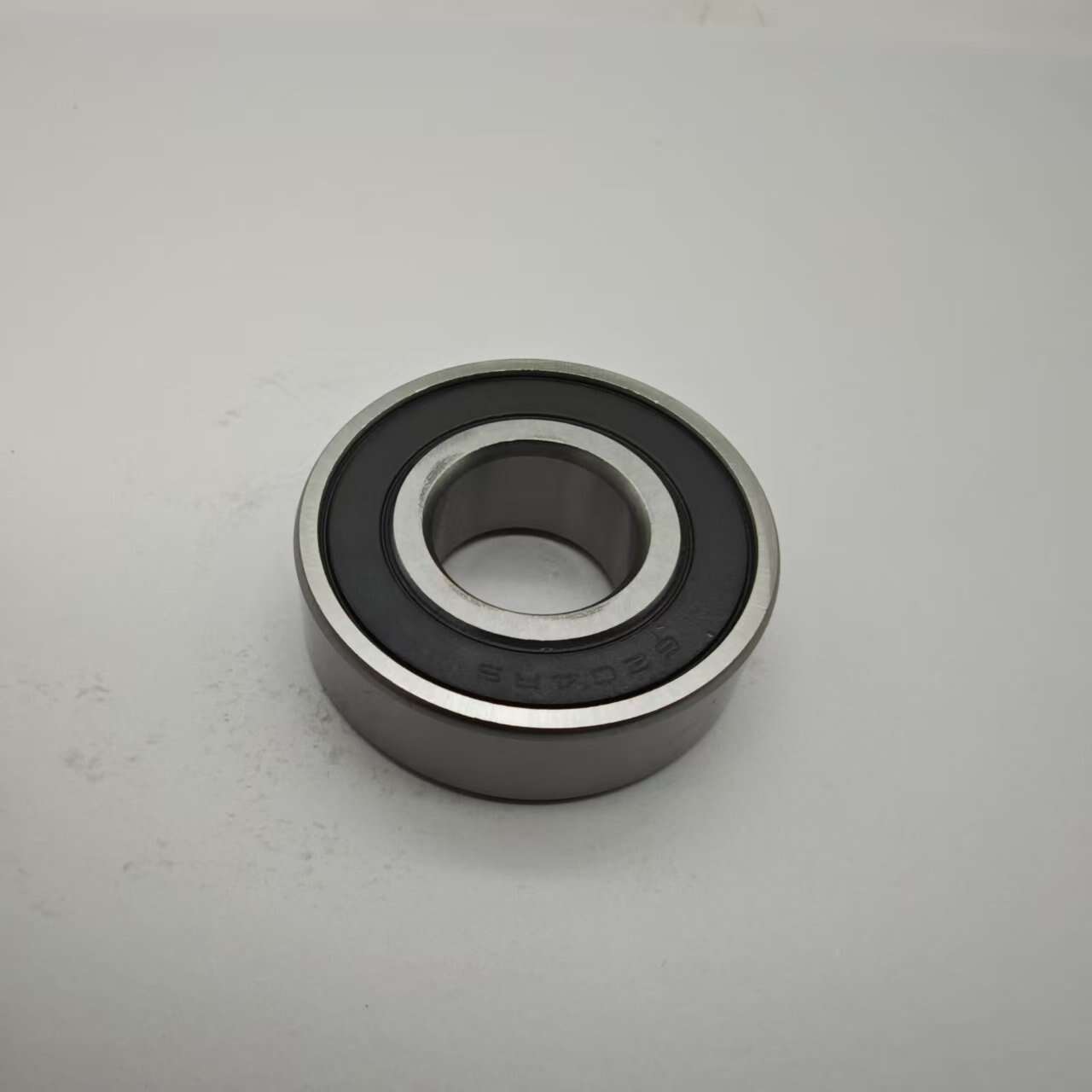

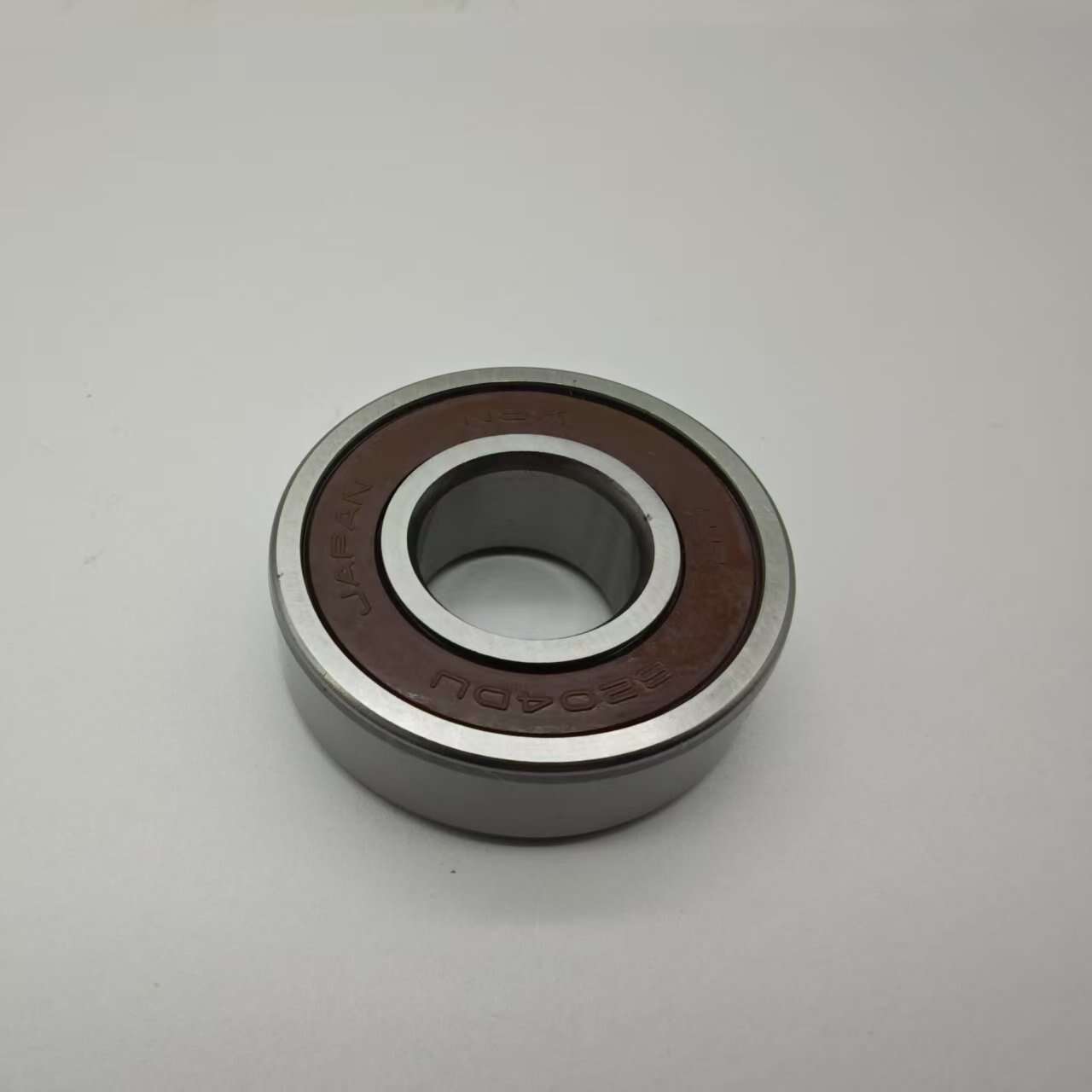

Deep groove ball bearings 6204DDU
The 6204DDU deep groove ball bearing is a premium quality, double-sealed bearing designed for durability and high-speed performance. This bearing features robust construction, excellent load capacity (Cr 12.8kN/Cor 6.65kN), and can operate at speeds up to 17,000 rpm with oil lubrication. The dual rubber seals (DDU designation) provide superior protection against contaminants while retaining lubrication. Ideal for electric motors, automotive components, and industrial machinery, this bearing offers reliable operation with minimal maintenance requirements.
Key Features
Double Rubber Sealed Design (DDU): Features high-quality rubber seals on both sides that effectively prevent dust, dirt, and moisture ingress while retaining lubricant, significantly extending bearing service life in harsh environments.
High-Speed Capability: Engineered for smooth operation at extreme speeds (up to 17,000 rpm with oil lubrication), making it perfect for high-performance applications requiring reliable rotation under demanding conditions.
Optimal Load Distribution: Precision-engineered raceways and high-grade steel construction provide balanced radial and axial load capacity (Cr 12.8kN/Cor 6.65kN), ensuring durability in various operating conditions.
Precision-Ground Components: Raceways and balls are precision-ground to ABEC-1 standards for smooth, low-noise operation with minimal vibration, ideal for sensitive applications.
Versatile Application Range: Suitable for both radial and axial loads in various orientations, offering flexibility in design and application across multiple industries.
Specifications
|
Parameter |
Specification |
|
Bearing Type |
Deep Groove Ball Bearing |
|
Designation |
6204DDU (Double Sealed) |
|
Dimensions (mm) |
20×47×14 (ID×OD×Width) |
|
Dynamic Load (Cr) |
12.8 kN |
|
Static Load (Cor) |
6.65 kN |
|
Speed Rating |
15,000 rpm (Grease) / 17,000 rpm (Oil) |
|
Seal Type |
Double Rubber Contact Seals (DDU) |
|
Material |
High-Carbon Chromium Steel |
|
Weight |
0.106 kg |
Applications
Electric Motors & Generators
Automotive Components
Industrial Machinery
Agricultural Equipment
HVAC Systems
Additional Information
1. Order & Payment
MOQ: 100 - 1,000 PCS
Payment Terms: T/T (Bank Transfer)
Sample Policy: Samples available (Free for samples under ¥100; cost refundable upon bulk order).
2. Production & Customization
Factory Location: Linqing City, Shandong Province, China
Company Type: Manufacturer & Trading Integrated
OEM/ODM: Supported
Custom Solutions: Tailored bearings for specific vehicles, environments, and performance needs.
Monthly Capacity: 200,000 sets.
3. Quality Assurance
Quality Standards: Rigorous testing (dimensions, rotation accuracy, noise, vibration, etc.).
Warranty: 50,000–80,000 KM durability guarantee.
Packaging: Individual color box + carton; palletized for large orders.
4. Shipping & Delivery
Delivery Time: 5–50 days (based on stock & production schedule).
Shipping Methods: Sea, Land, or Air (flexible based on order volume).
Tracking: Real-time updates via our website.
5. After-Sales Support
Technical Assistance: 24/7 online support.
Issue Resolution: Contact us immediately for unreceived/damaged items.
6. Why Choose Us?
20+ Years Expertise (Est. 2003)
Precision Matching for vehicle-specific needs.
Transparent Process: From quote to delivery (provide bearing codes/OEM numbers + quantity for accurate quotes).
