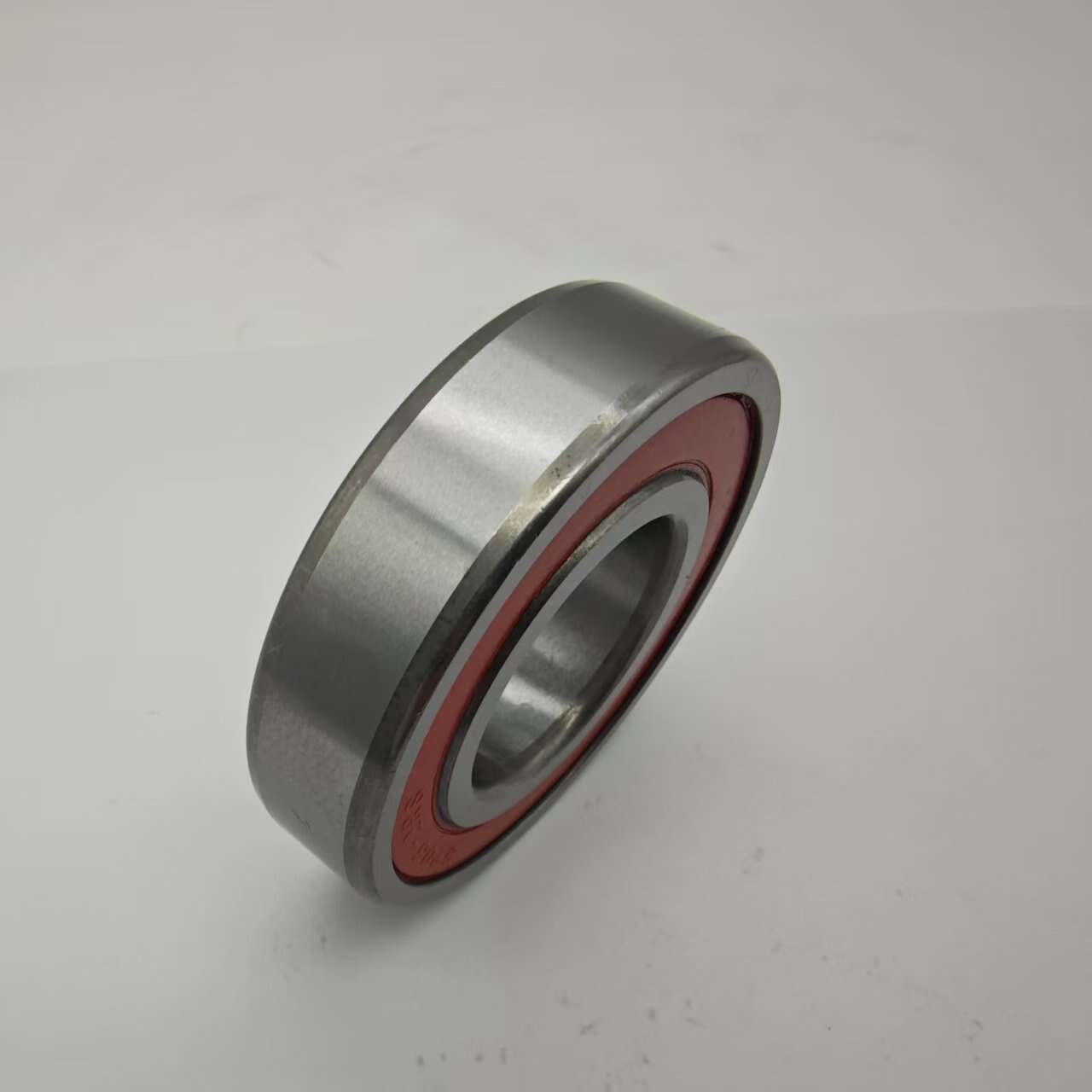

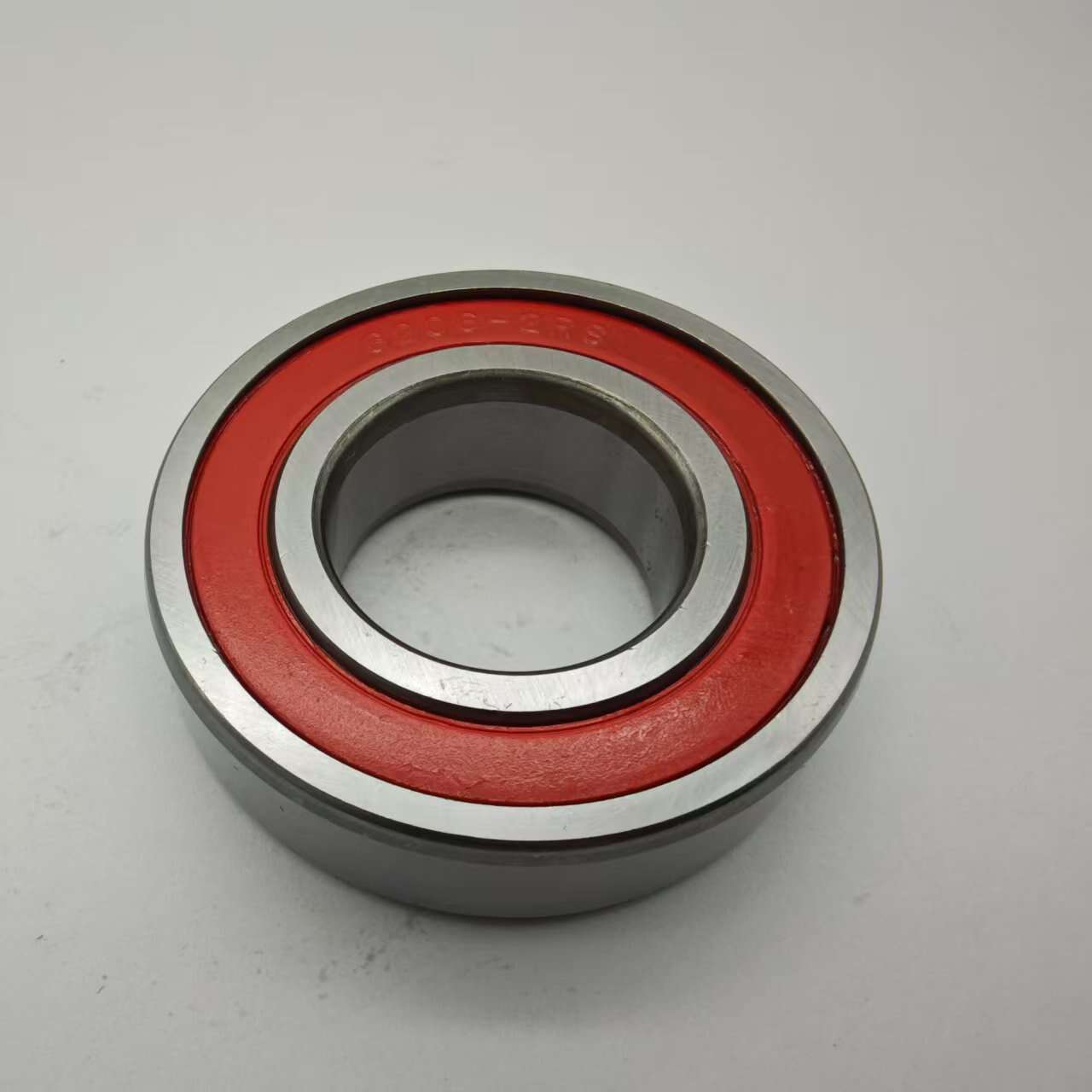

Deep groove ball bearings 6206-2RS
The 6206-2RS Deep Groove Ball Bearing is designed for high efficiency and performance in a wide range of industrial and automotive applications. With double rubber seals, it provides excellent protection against dust and contaminants while ensuring smooth, low-friction operation. This bearing guarantees durability and consistent performance even under demanding conditions.
Key Features
Superior Sealing Performance: Equipped with double rubber seals (2RS), this bearing effectively blocks out dirt, dust, and moisture to extend operational life.
High Load Capacity: Built to handle both radial and axial loads with a dynamic load rating of 19.5 kN and a static load rating of 11.3 kN, ensuring reliability even under heavy working conditions.
High-Speed Capability: Optimized for utmost speeds of up to 11,000 rpm with grease lubrication and up to 13,000 rpm with oil, delivering smooth and efficient motion.
Durable Construction: Manufactured from premium-grade steel, providing excellent wear resistance and superior strength for long-term performance.
Versatile Application: Ideal for use in electric motors, automobiles, household appliances, and heavy machinery due to its compact size and high operational reliability.
Specifications
|
Specification |
Details |
|
Part Number |
6206-2RS |
|
Type |
Deep Groove Ball Bearing |
|
Sealing Type |
Double Rubber Sealed (2RS) |
|
Inner Diameter (d) |
30 mm |
|
Outer Diameter (D) |
62 mm |
|
Width (B) |
16 mm |
|
Dynamic Load Rating (Cr) |
19.5 kN |
|
Static Load Rating (Cor) |
11.3 kN |
|
Utmost Speed (Grease) |
11,000 rpm |
|
Utmost Speed (Oil) |
13,000 rpm |
|
Weight |
0.199 kg |
|
Material |
High-quality Chrome Steel |
|
Lubrication |
Grease/Oil |
Applications
The 6206-2RS Deep Groove Ball Bearing is widely used in:
Automotive Industry: Suitable for wheels, transmissions, and electric motors.
Industrial Machinery: Applied in conveyors, gearboxes, pumps, and compressors.
Household Appliances: Common in washing machines, air conditioners, and vacuum cleaners.
Agricultural Equipment: Used in tractors, harvesters, and other farm machinery.
Electric Motors: Ideal for high-speed and high-efficiency motor operations.
Additional Information
1. Order & Payment
MOQ: 100 - 1,000 PCS
Payment Terms: T/T (Bank Transfer)
Sample Policy: Samples available (Free for samples under ¥100; cost refundable upon bulk order).
2. Production & Customization
Factory Location: Linqing City, Shandong Province, China
Company Type: Manufacturer & Trading Integrated
OEM/ODM: Supported
Custom Solutions: Tailored bearings for specific vehicles, environments, and performance needs.
Monthly Capacity: 200,000 sets.
3. Quality Assurance
Quality Standards: Rigorous testing (dimensions, rotation accuracy, noise, vibration, etc.).
Warranty: 50,000–80,000 KM durability guarantee.
Packaging: Individual color box + carton; palletized for large orders.
4. Shipping & Delivery
Delivery Time: 5–50 days (based on stock & production schedule).
Shipping Methods: Sea, Land, or Air (flexible based on order volume).
Tracking: Real-time updates via our website.
5. After-Sales Support
Technical Assistance: 24/7 online support.
Issue Resolution: Contact us immediately for unreceived/damaged items.
6. Why Choose Us?
20+ Years Expertise (Est. 2003)
Precision Matching for vehicle-specific needs.
Transparent Process: From quote to delivery (provide bearing codes/OEM numbers + quantity for accurate quotes).
