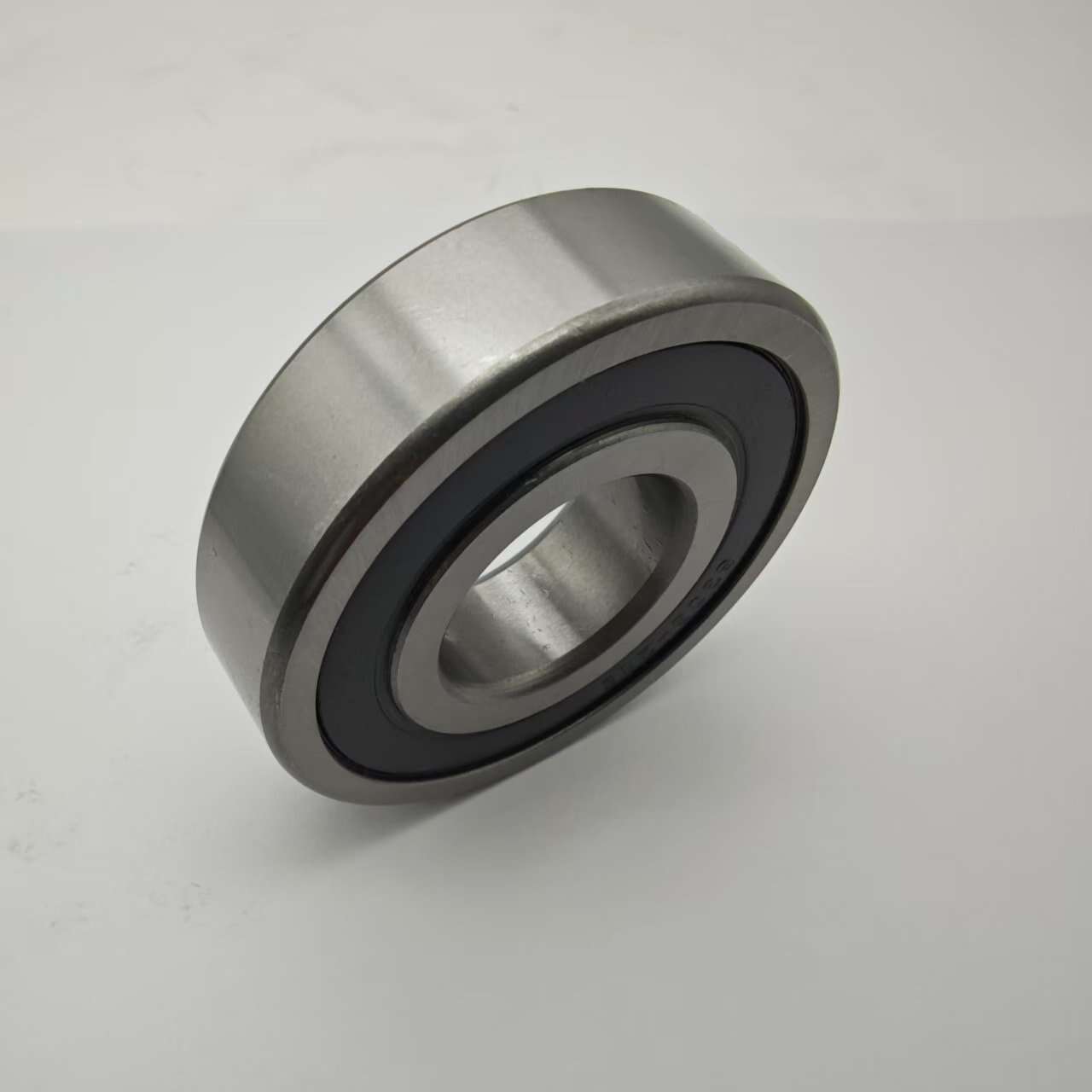

Deep groove ball bearings 6306-2RS
The 6306-2RS deep groove ball bearing is a robust, double-sealed bearing designed for demanding industrial and automotive applications. The dual rubber seals (2RS designation) provide superior contamination protection while retaining lubrication. Manufactured from high-grade bearing steel, this unit is ideal for electric motors, gearboxes, pumps, and automotive components requiring reliable performance in harsh operating conditions.
Key Features
Double Rubber Sealed Design (2RS): Features high-performance nitrile rubber seals on both sides that effectively block contaminants while maintaining proper lubrication, significantly extending service life in dusty or wet environments.
Enhanced Load Capacity: Engineered with optimized raceway geometry to handle substantial radial loads (Cr 26.7kN) and moderate axial loads, making it suitable for heavy-duty applications in various industries.
Precision-Ground Components: Manufactured to ABEC-1 standards with precision-ground raceways and balls for smooth, low-vibration operation essential for sensitive machinery.
Versatile Speed Performance: Capable of operating at 9,600 rpm with grease lubrication and up to 12,000 rpm with oil lubrication, accommodating a wide range of industrial speed requirements.
Maintenance-Friendly Design: Pre-lubricated with high-quality grease and sealed for life in many applications, reducing maintenance needs and downtime in industrial settings.
Specifications
|
Parameter |
Specification |
|
Bearing Type |
Deep Groove Ball Bearing |
|
Designation |
6306-2RS (Double Sealed) |
|
Dimensions (mm) |
30×72×19 (ID×OD×Width) |
|
Dynamic Load (Cr) |
26.7 kN |
|
Static Load (Cor) |
15 kN |
|
Speed Rating |
9,600 rpm (Grease) / 12,000 rpm (Oil) |
|
Seal Type |
Double Rubber Contact Seals (2RS) |
|
Material |
High-Carbon Chromium Steel |
|
Weight |
0.346 kg |
Applications
Industrial Gearboxes
Electric Motors & Generators
Automotive Systems
Pumps & Compressors
Construction Equipment
Additional Information
1. Order & Payment
MOQ: 100 - 1,000 PCS
Payment Terms: T/T (Bank Transfer)
Sample Policy: Samples available (Free for samples under ¥100; cost refundable upon bulk order).
2. Production & Customization
Factory Location: Linqing City, Shandong Province, China
Company Type: Manufacturer & Trading Integrated
OEM/ODM: Supported
Custom Solutions: Tailored bearings for specific vehicles, environments, and performance needs.
Monthly Capacity: 200,000 sets.
3. Quality Assurance
Quality Standards: Rigorous testing (dimensions, rotation accuracy, noise, vibration, etc.).
Warranty: 50,000–80,000 KM durability guarantee.
Packaging: Individual color box + carton; palletized for large orders.
4. Shipping & Delivery
Delivery Time: 5–50 days (based on stock & production schedule).
Shipping Methods: Sea, Land, or Air (flexible based on order volume).
Tracking: Real-time updates via our website.
5. After-Sales Support
Technical Assistance: 24/7 online support.
Issue Resolution: Contact us immediately for unreceived/damaged items.
6. Why Choose Us?
20+ Years Expertise (Est. 2003)
Precision Matching for vehicle-specific needs.
Transparent Process: From quote to delivery (provide bearing codes/OEM numbers + quantity for accurate quotes).
